PROJECT STEP (Stair Traversal and Exploration Platform)

Currently Designing Iteration 5

The Project

Developing a small-scale humanoid bi-ped that can walk, climb obstacles, and navigate in an environment intelligently.

The Plan

After talking with people in the humanoid industry, the plan laid out for the project was to get the simplest demonstration ready as a proof of concept and iteratively build complexity and expertise on top of that.

Phase 0

The goal was to design a 6-DOF walking robot
The first Concept was designed to jumpstart the process and see what exact gaps I had in the knowledge.

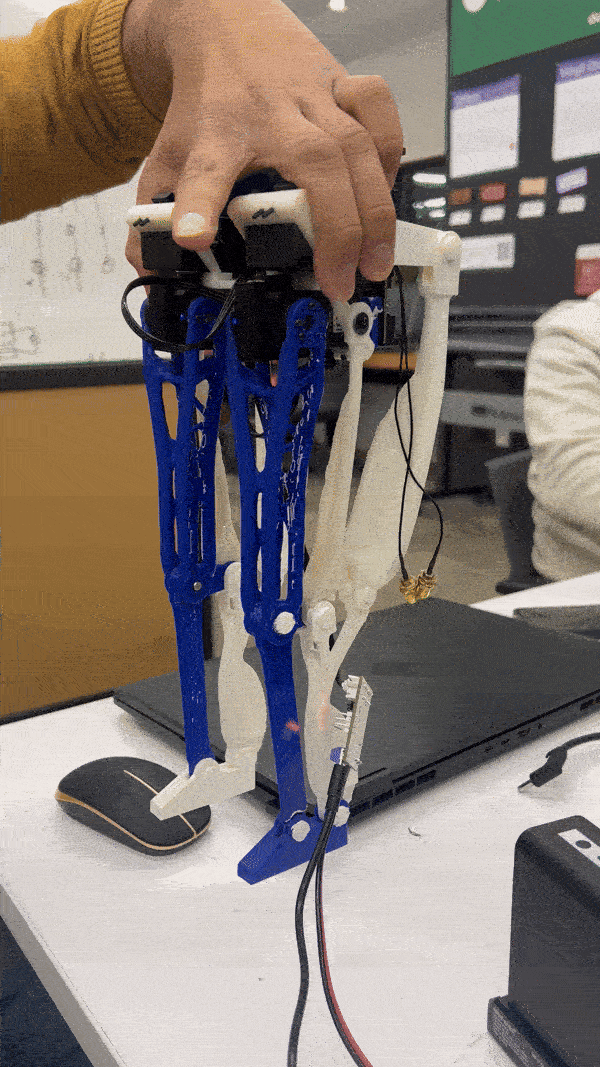

Each leg was designed for 3 Degrees of Freedom
For the Knee Joint, a parallel linkage Mechanism was considered so that the Feet would always stay parallel to the ground. This would allow me to not care about the DOF for the feet.

Learnings after review with people in the industry

Minimize complexity across the board. Just get to the most basic demo
Get Clarity on further questions
- Can you even make a bipedal robot without the top half that is stable and can actually, walk?
- Why do you need 6 DOF?
- Can you design a robot that can walk with 2 DOFs?

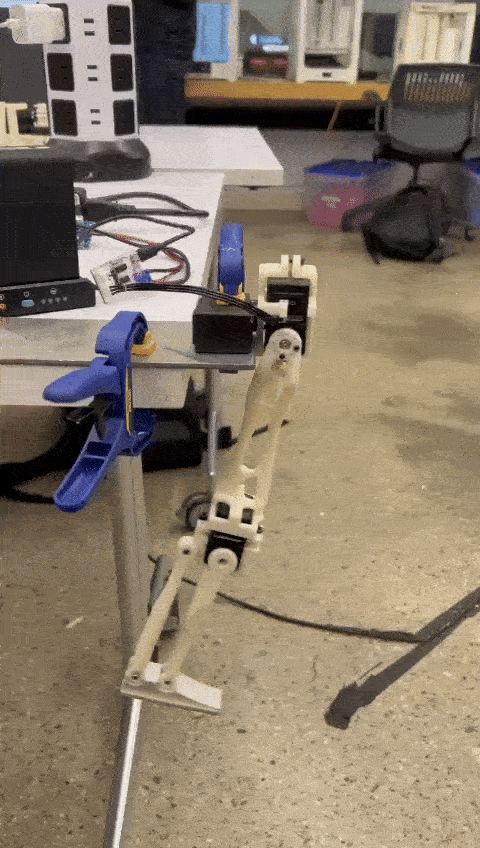

Phase 1 ( 2 DOF Robot )

Key Goals

Design a 2 DOF walking robot that can walk on flat ground.
Understand the underlying physics of the mechanical system and build complexity gradually
Understand why exactly you need every Degree of Freedom

Problems and insights

there needs to be a propelling force that needs to be exerted in the backward direction for the robot to walk in the forward direction. with the servos placed in the directions given. there was little to no exerted force in the backward-forward direction. this leads to the robot moving in its place.

Solutions tried to get the robot to walk

For the robot to walk, one solution I could work with is to manipulate the surface on which the robot walks to create a differential in traction. ( did not work )
need a surface that can slide forward easily but can’t be slid backward easily. maybe, design new boots for the robot.(did not work)
Using the difference between kinetic friction and static friction move the leg forward faster and drag it back slower. (Works. the robot moves forward and can turn 90 degrees)

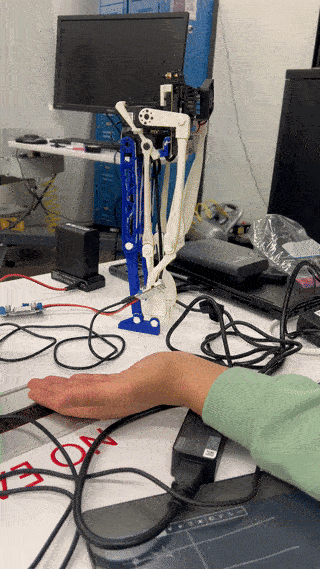

Phase 2 ( 4 DOF Robot )

Key Goals

Design a 4 DOF walking robot that can walk on flat surfaces and climb a small obstacle
Write a Robot URDF
Generate a walking trajectory for the robot
get started with the simulation

Learnings

servos used in this prototype cannot generate feedback, not allowing me to apply a PID controller for the walking gait cycle
generation of the walking Gait mechanism becomes a trial-and-error method as I have to adjust the code by visually seeing the output of the gait.
variability of the servos combined with the structure. it makes the whole body have backlash. That gives me less control as the backlash error keeps adding up as the number of joints increases.
I should design a joint that does not increase friction proportional to the tightness of the joint.
variability of the servos combined with the structure, makes the whole body have backlash. that gives me less control as the backlash error keeps adding up as the no. of joints increases.

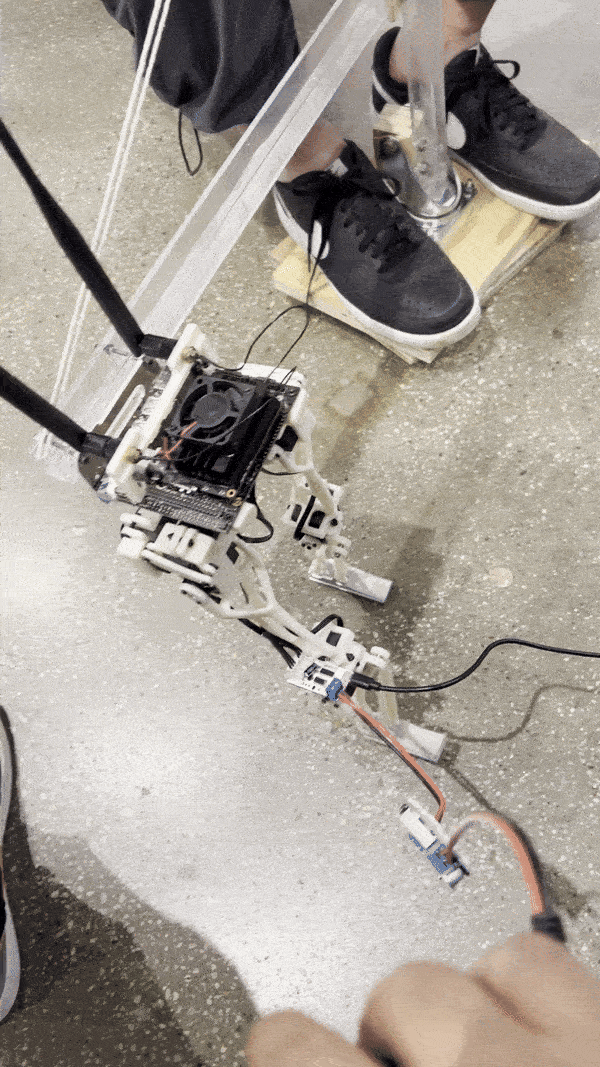

4 DOF iteration 2

Key Goals

Design the robot 4DOF walking robot
better designed links and joints
It should be a mobile robot that can be controlled remotely
battery management system onboard
The robot should not have loose wirings or a power connection ( should run on an onboard battery )
COM tracking and onboard IMU
Servo motor sizing with position feedback
Generate Gait for a 4 DOF robot

Biped prototype working inverse kinematics

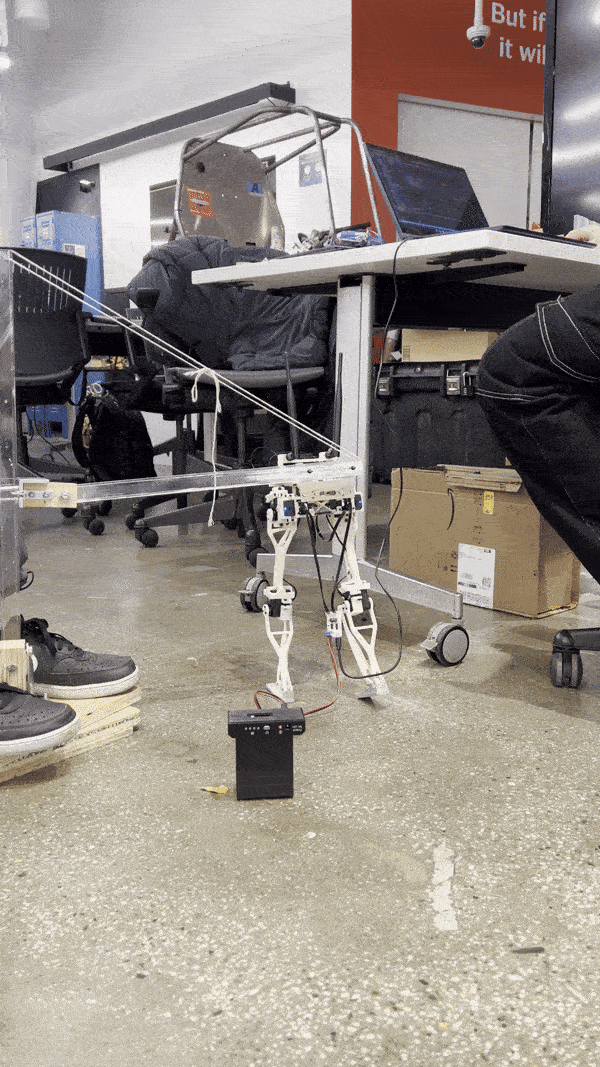

Biped Prototype 3 falling before taking a step

each leg is designed as a 5-link mechanism embedded within a 2R mechanism. that introduces a higher layer of complexity into the whole design. solving it took some time but we solved the modal as a mathematics function. here is the full breakdown of the solution
this puts constraints on the 5link mechanism and recalculates the inverse kinematics of the whole mechanism.

Inverse Kinematic Solution

inverse kinematics soulution for the biped robot

Simulation Progress

We wrote a URDF ( universal robot description format ) for our robot
imported that URDF file into the gazebo physics engine for simulating the physics of the robot
we setup the environment in a way that allows us to predict what happens to the robot

Problems

after solving kinematics, we made the robot follow different trajectories. after a lot of trial and error on getting the robot to walk. we discovered a singularity in the design.

The location of the singularity was at the pose of the robot which was necessary to achieve a gait cycle.
the robot was falling quicker than we could move the foot from s single-supported phase to a double-supported phase. this meant that the the distance between the feet was higher than what the system could handle making it topple quickly.
We had 2 options at this point. Re-design the 4DOF system to figure out gait or focus on the 6DOF system. ( 6DOF can also act like a 4 DOF system if we lock 2 actuators ) and decided to focus on the 6 DOF system as that doesn't have this type of singularity in the design.

inverse kinematics solution for prototype 4

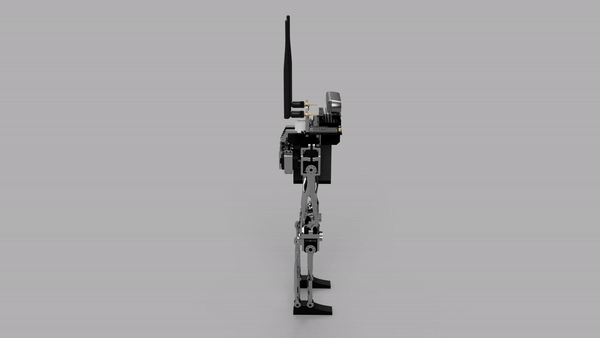

Phase 3 ( 6 DOF system )

Key Goals( including all the previous key goals )

Design the robot 6DOF walking robot
links and joints designed without singularity in the required workspace of the robot
the robot should have mechanical capabilities to climb 3.5 in stairs. ( half of what's required to climb a full scale which is 7-8 inches )
foot design to accommodate lateral stability and with contact modeling
IntelliSense Camera onboard for getting the point cloud of the stairs.
Algorithmic design to execute the task of stairclimbing for Perception, Gait Generation, and Controls.

Forward and Inverse Kinematics

Control Analysis of the Structure

To design the Ideal gait cycle and control algorithms for our robot for walking we needed to understand the boundaries of our system. we plotted the bode plot for a single leg while keeping the knee locked.
Plotting this gave us a measure called the bandwidth frequency of the system which came out to be 0.27Hz
That tells us that the minimum time-period of a gait cycle can be 1/bandwidth frequency

Current Status

The team is working on multiple fronts
the 6DOF has been designed and assembled.
Sizing and designing iteration 5
Solving problems regarding the firmware and power electronics for iteration 5. The robot has to run on the 24V required by the actuators.
Foot design to accommodate lateral stability and with contact modeling for 6 DOF system
Algorithmic design to execute the task of stairclimbing for Perception, Gait Generation, and Controls for 6 DOF system
Wrote the URDF of the robot and trying out different gaits
Working on dynamic modeling of the 6 DOF system

Fundraising and the Team

As we started working on the 4 DOF system, I realized the complexity of the project is scaling up and we need more expertise in the team. Moreover, we needed Funds to keep the project going.
After talking to a huge pool of people from the university I brought the right type of people together who are driven enough to work on challenging problems.
We have raised 1500$ until now for the project through the NYU Makerspace funding showcase and crowdfunding which enabled us to build this project.
Watch our interview with NYU!
